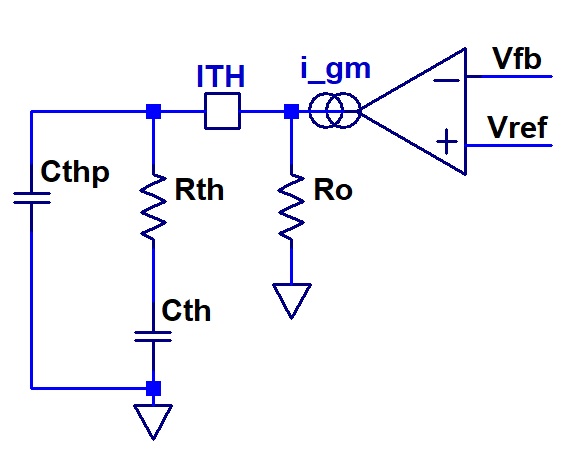

Parameters
\( f_{z1} = \frac{1}{2\pi R_{TH} C_{TH}}, f_{p2} = \frac{C_{TH} + C_{THP}}{2\pi R_{TH} C_{TH} C_{THP}} \)
\( f_{z1} = \frac{1}{2\pi R_{TH} C_{TH}}, f_{p0} = \frac{1}{2\pi R_o C_{TH}}, f_{p2} = \frac{C_{TH} + C_{THP}}{2\pi R_{TH} C_{TH} C_{THP}} \)
\( f_{p2} = \frac{C_{TH} + C_{THP}}{2\pi R_{TH} C_{TH} C_{THP}} \)
\( \text{Gain} = 20 \log_{10}(g_m R_o) \)
\( \text{Gain} = 20 \log_{10}(g_m R_o), f_{p0} = \frac{1}{2\pi R_o C_{TH}} \)
X: - kHz, Y: - dB
X: - kHz, Y: - °
Transfer Function: \( A(s) = \)
Zero: 0 kHz, Pole: 0 kHz
Phase Boost: 0
